Silicon nitride (Si₃N₄) ceramics are advanced engineering materials widely valued for their exceptional mechanical strength, thermal stability, wear resistance, and chemical inertness. With a unique combination of low density, high fracture toughness, and excellent performance at elevated temperatures, silicon nitride ceramics deliver reliable operation in environments where conventional metallic materials are unable to perform. These characteristics make them an ideal choice for demanding industrial, aerospace, and biomedical applications.
One of the most important applications of silicon nitride ceramics is in high-performance bearing systems. Used as rolling elements in bearings for aerospace equipment, machine tools, and high-speed machinery, silicon nitride offers significant advantages over steel. Its low density reduces centrifugal forces during high-speed rotation, while its extreme hardness and wear resistance ensure long service life. In addition, silicon nitride bearings can operate with minimal lubrication and maintain stable performance at temperatures where traditional steel bearings would experience rapid degradation or failure.
Silicon nitride ceramics are also extensively used as cutting tool materials, particularly for metal cutting inserts. Their exceptional hot hardness and resistance to thermal shock allow them to withstand the high temperatures generated during high-speed machining. As a result, silicon nitride cutting tools are especially effective for machining cast iron and nickel-based superalloys. Compared with traditional carbide tools, they offer higher cutting speeds, improved tool life, and greater productivity in demanding manufacturing environments.
In the medical field, silicon nitride ceramics are increasingly recognized as a premium material for orthopedic implants. Their excellent biocompatibility, high strength, and superior wear resistance make them particularly suitable for spinal fusion cages. Moreover, silicon nitride’s bone-like surface chemistry promotes bone on-growth, while its radiolucency allows clear post-operative imaging using CT and MRI scans, supporting accurate diagnosis and long-term patient outcomes.
| Material | Silicon Nitride (Si₃N₄) | |||||
| Color | Gray | Black | Gray | Black | ||
| Sintering | GPSN | HPSN | ||||
| Density | g/cm³ | 3.20 | 3.25 | ≥3.20 | ≥3.25 | |
| Water Absorption | % | 0 | 0 | 0 | 0 | |
| Vickers Hardness (Load 5KG) | GPa | 13.9 | 14.5 | 15.0 | 15.0 | |
| Flexural Strength | MPa | 610 | 700 | ≥900 | ≥1000 | |
| Compressive Strength | MPa | 3200 | 3200 | 3900 | 3900 | |
| Yong's Modulus of Elasticity | GPa | 300 | 310 | 300 | 310 | |
| Poisson's Ratio | 0.27 | 0.28 | 0.27 | 0.28 | ||
| Fracture Toughness | MPa.m¹/² | 6-7 | 6-7 | ≥6 | ≥6 | |
| Coefficient of Linear Thermal Expansion | 40-400℃ | ×10⁶/℃ | 3.3 | 3.5 | 3.3 | 3.5 |
| Thermal Conductivity | 20℃ | W/(m.k) | 20 | 23 | 20 | 23 |
| Volume Resistivity | 20℃ | Ω.cm | 10¹⁴ | 10¹⁴ | ≥10¹⁴ | ≥10¹⁴ |

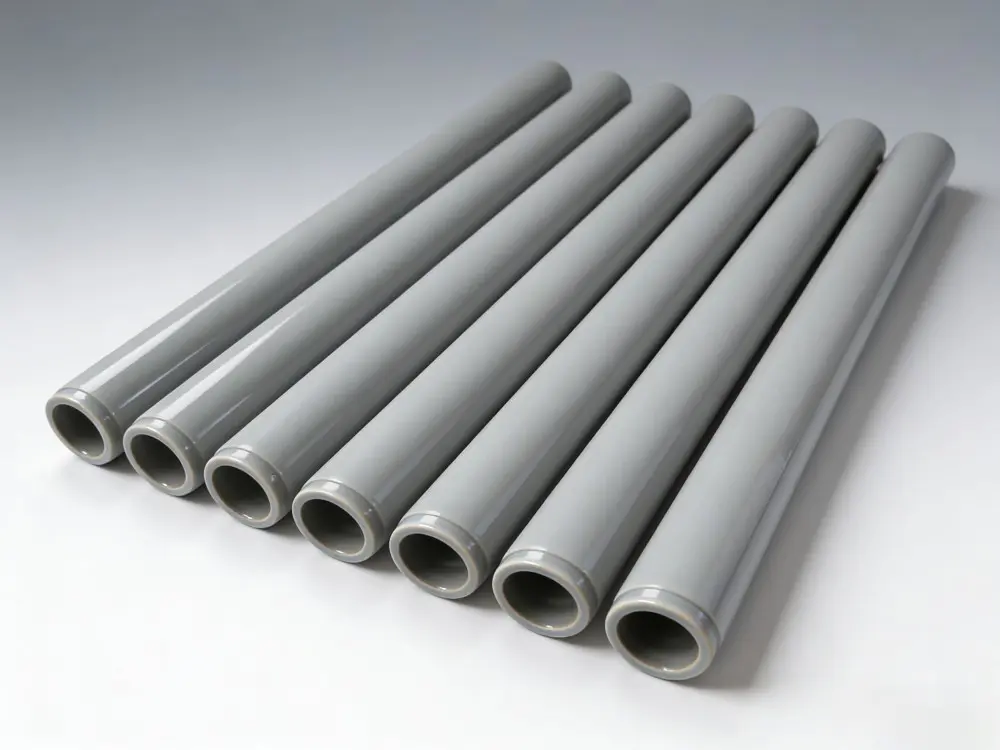

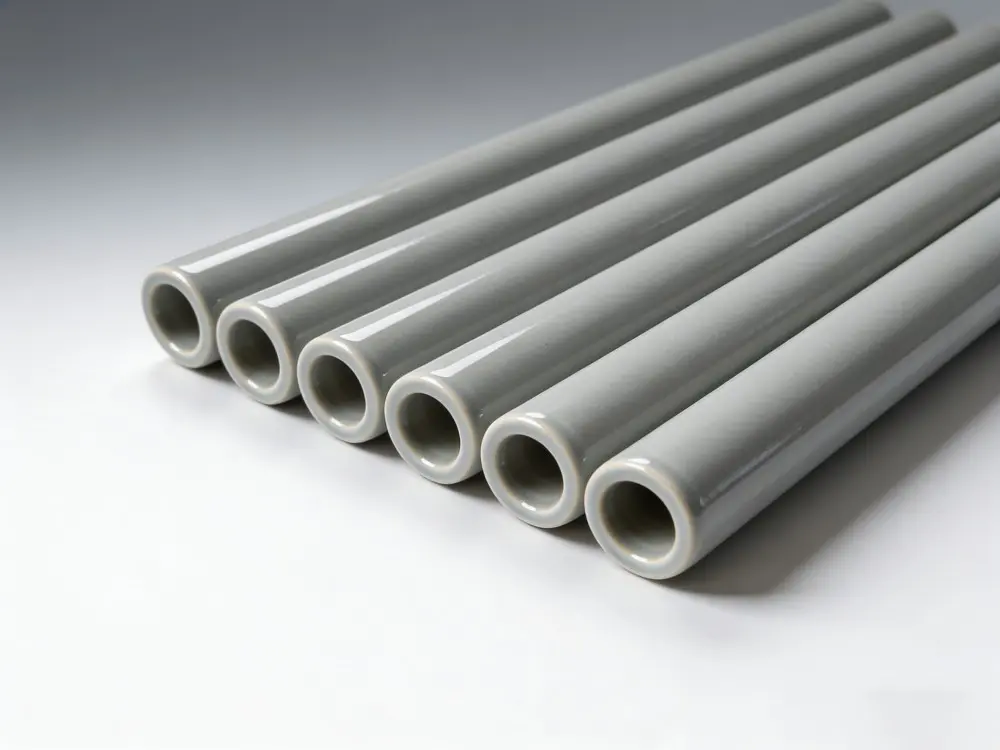

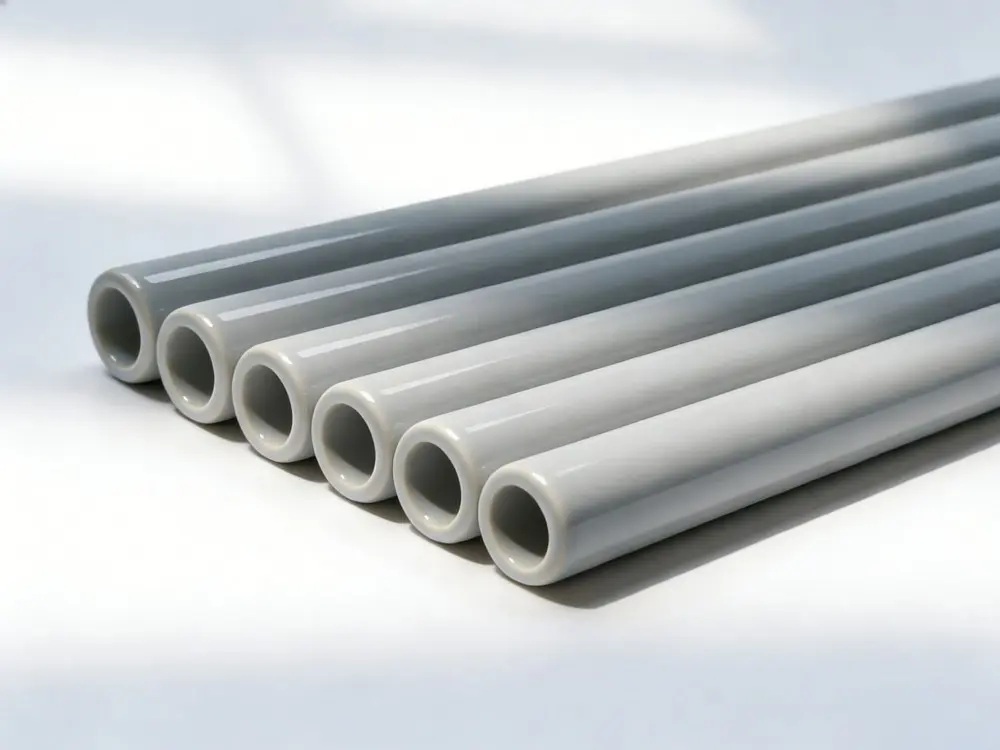

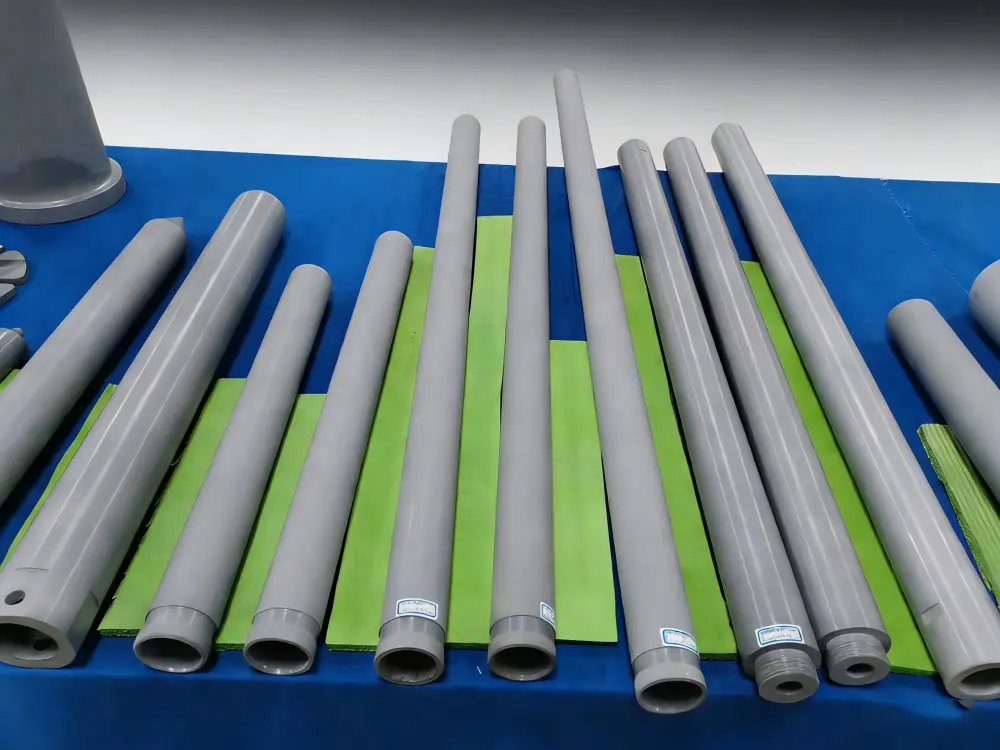

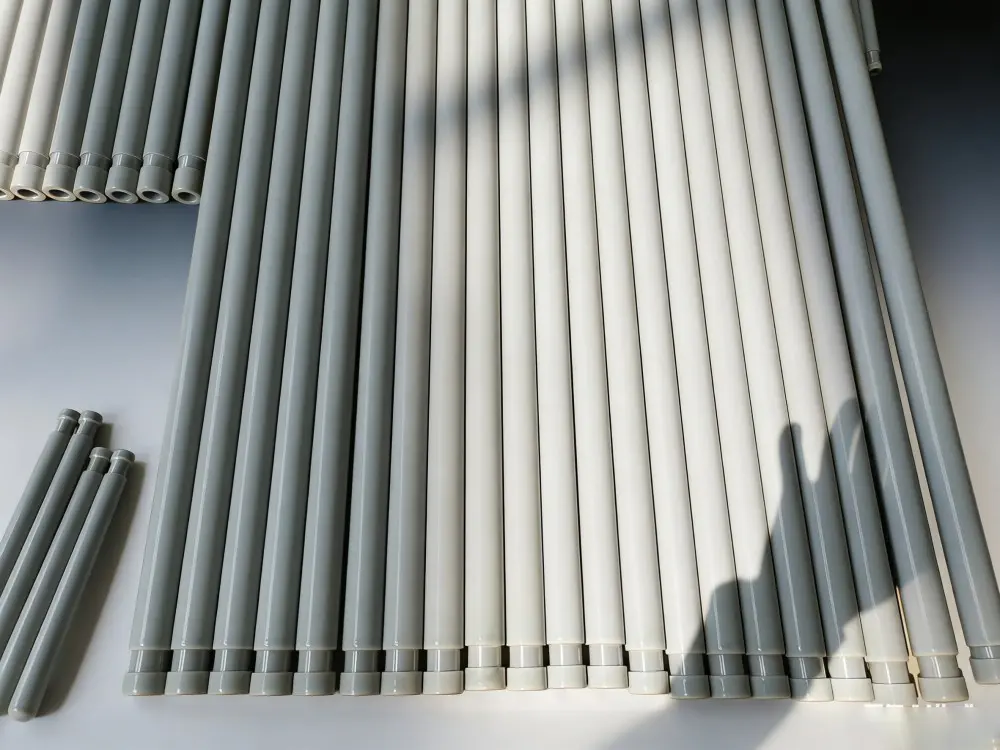

Silicon Nitride like ceramics have found extensive use in non-ferrous molten metal handling, particularly aluminum and its alloys, including metal feed tubes for aluminum die casting, burner and immersion heater tubes, injector and degassing for nonferrous metals, thermocouple protection tubes, crucibles and ladles.
