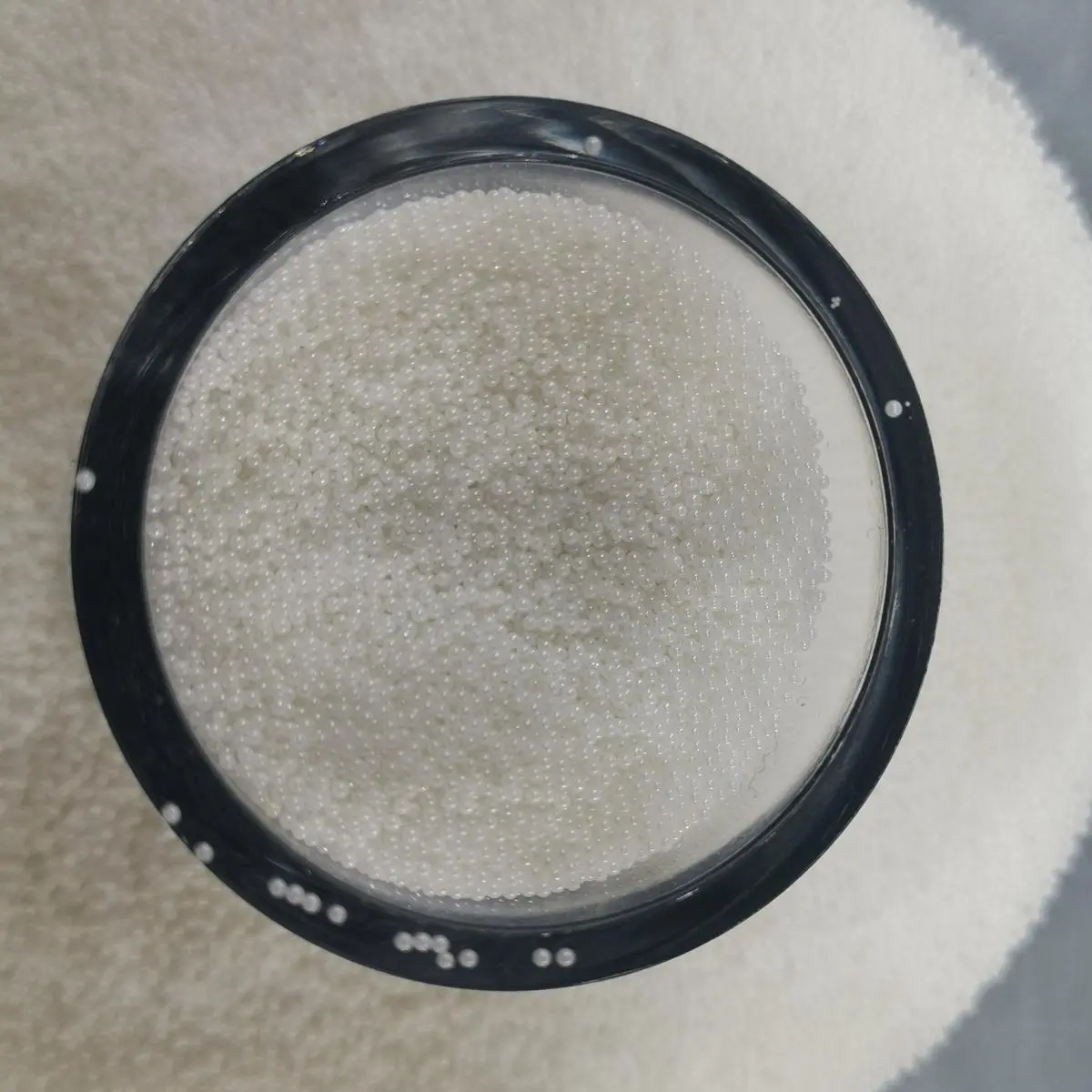

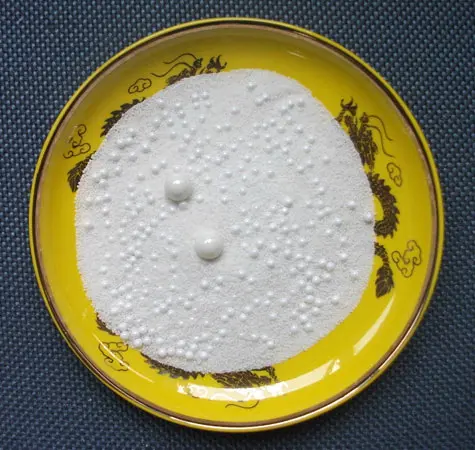

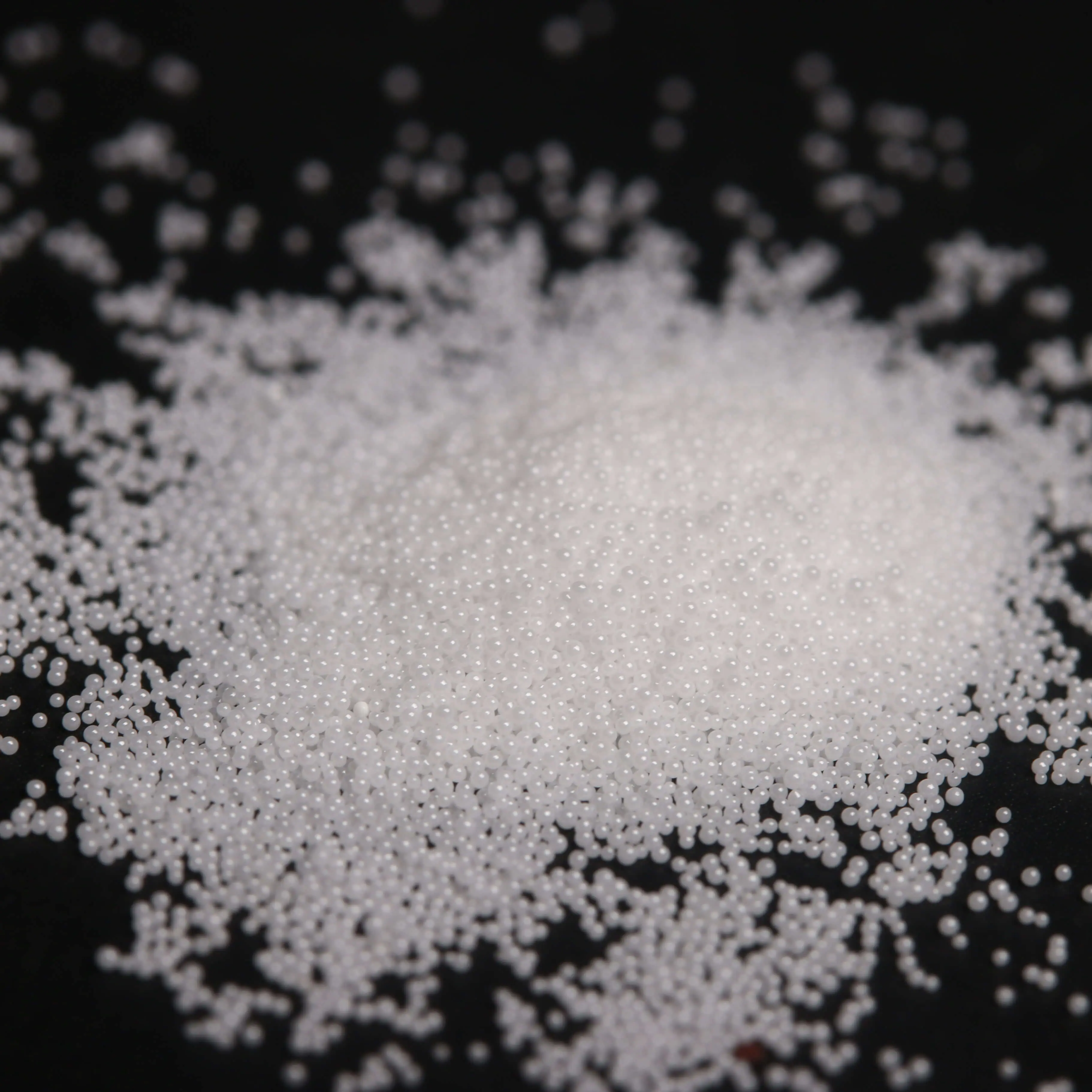

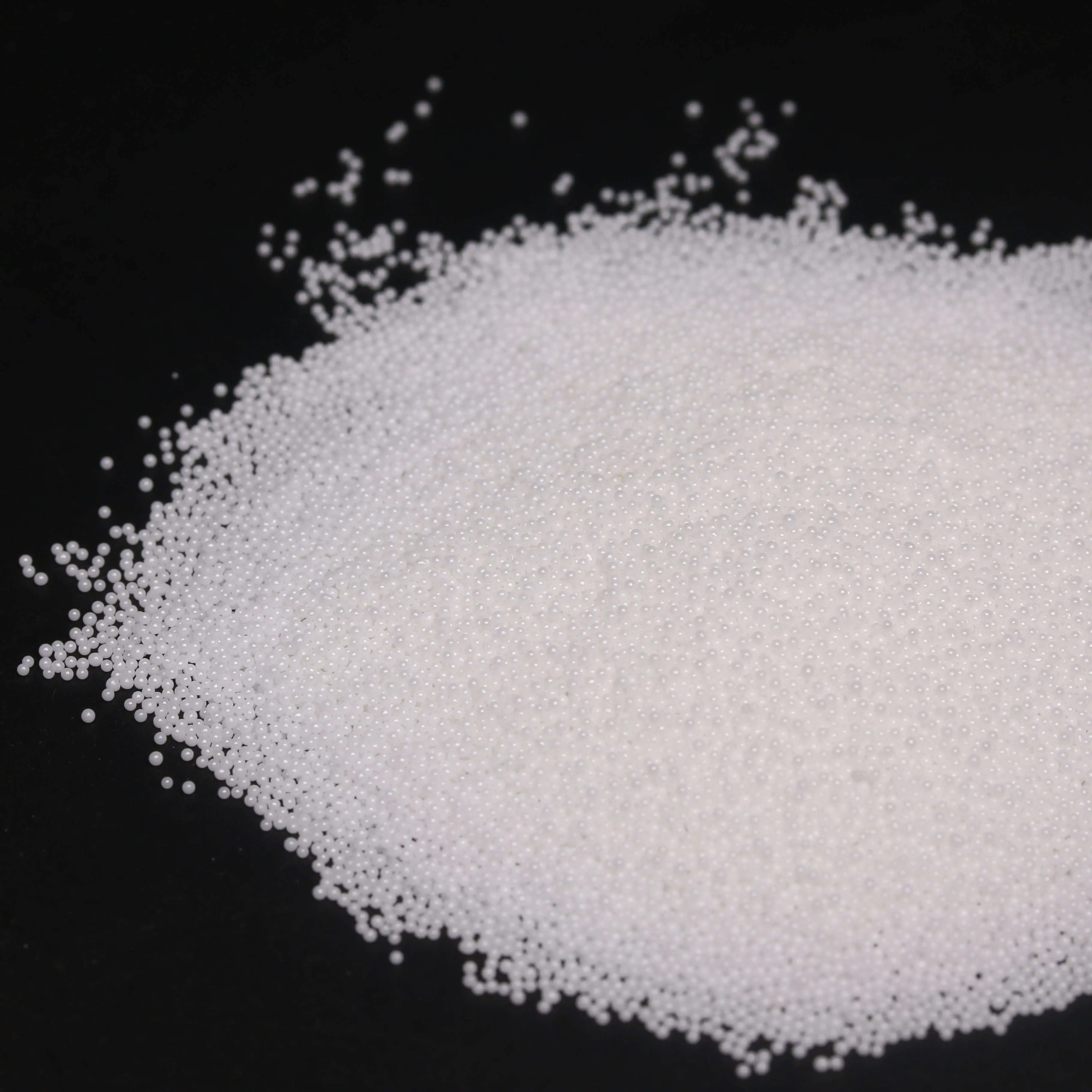

China High-Performance Zirconia Ceramic Beads from China Suppliers and Factory for Efficient Grinding and Dispersion Supplier, Suppliers
Discover our high-performance zirconia ceramic beads, expertly manufactured in China by leading suppliers in the industry. These beads offer unparalleled hardness, wear resistance, and exceptional fracture toughness, making them perfect for high-efficiency grinding and dispersion. Ideal for various applications, including paints, inks, coatings, and battery materials, our zirconia beads feature a smooth surface and dense structure that significantly reduce equipment wear. This ensures superior milling results and product purity, while also extending operational longevity. Choose our factory for reliable, top-quality ceramic beads that meet your grinding needs
Paints & CoatingsHigh-efficiency dispersion and grinding of pigments, paints, automotive coatings, and architectural coatings for optimal color consistency and fineness.
2
InksProducing high-quality printing inks (gravure, flexographic, screen printing) with uniform particle distribution and smooth flow properties.
Application
3
Battery MaterialsCritical for grinding and dispersing cathode materials (e.g., lithium iron phosphate, ternary materials), anodes, and solid-state electrolytes in lithium-ion battery production.
4
Minerals & MiningApplied in wet grinding of non-metallic minerals such as calcium carbonate, kaolin, and titanium dioxide.
Application
5
AgrochemicalsUsed for producing high-performance pesticide suspensions, fungicides, and herbicides with stable particle size.
6
Pharmaceuticals & FoodFine grinding and homogenization of pharmaceutical ingredients, health supplements, and food products where high purity is required.
7
Electronic MaterialsEmployed in grinding ceramic powders, electronic pastes, and magnetic materials for advanced electronic components.
Video

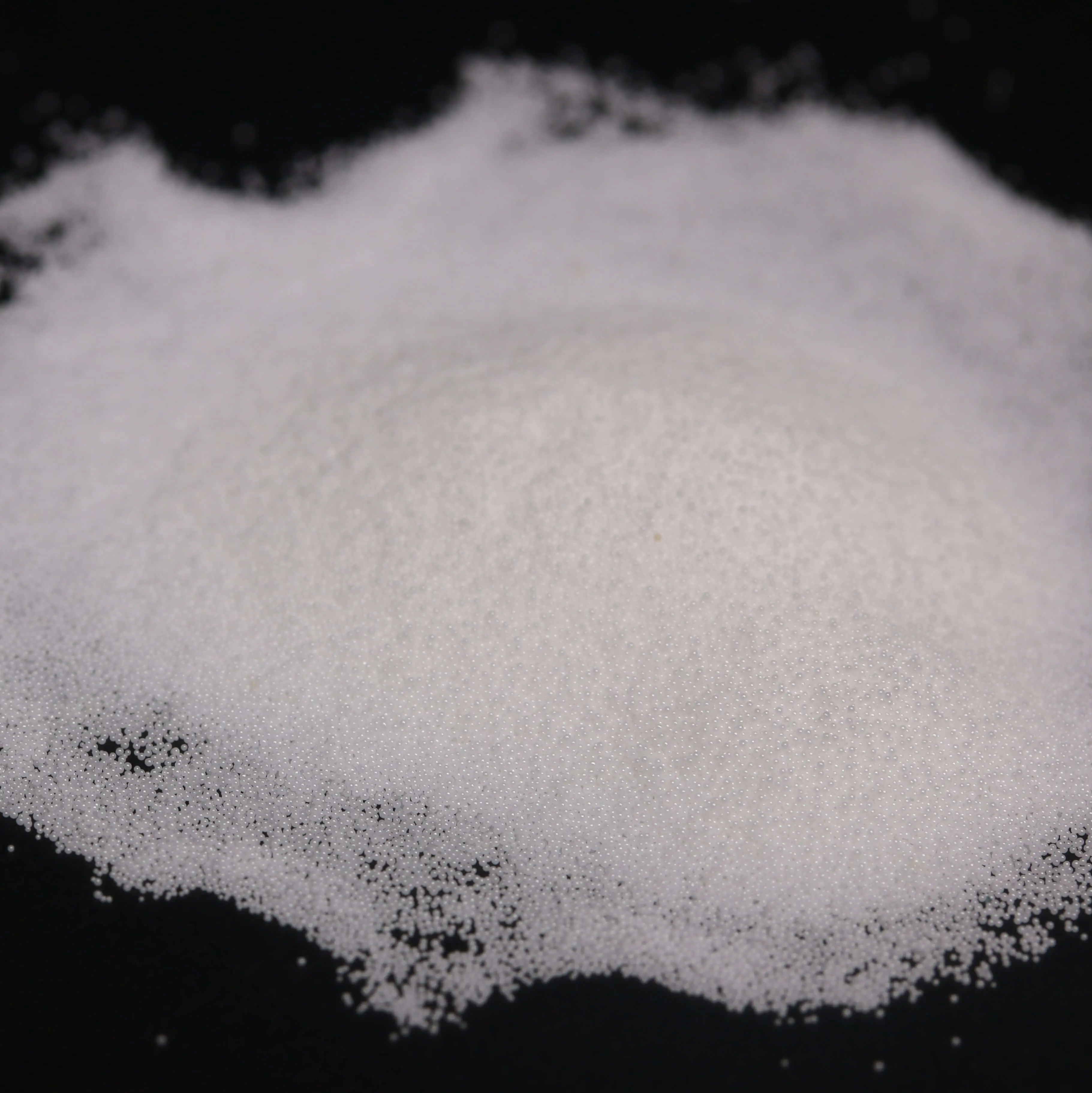

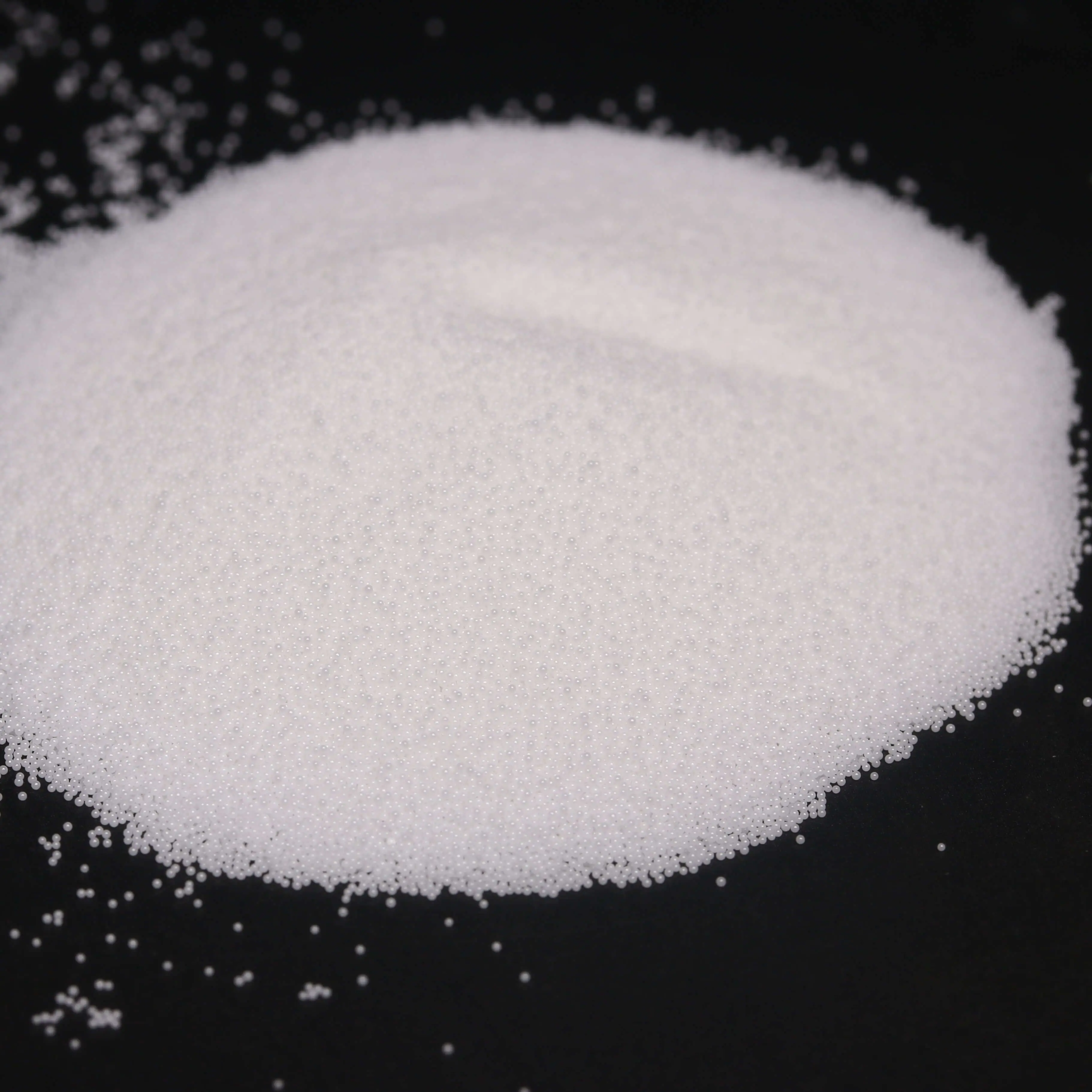

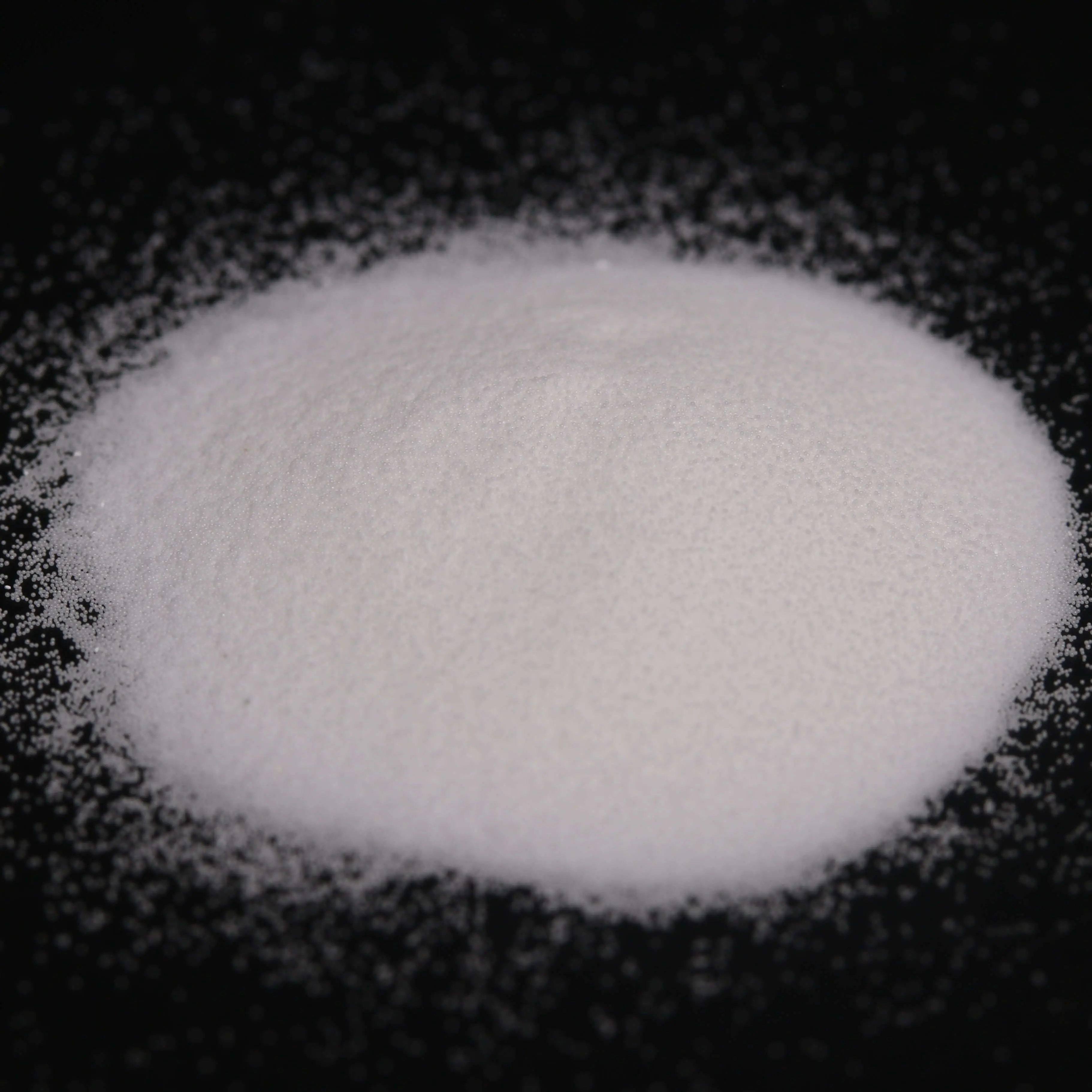

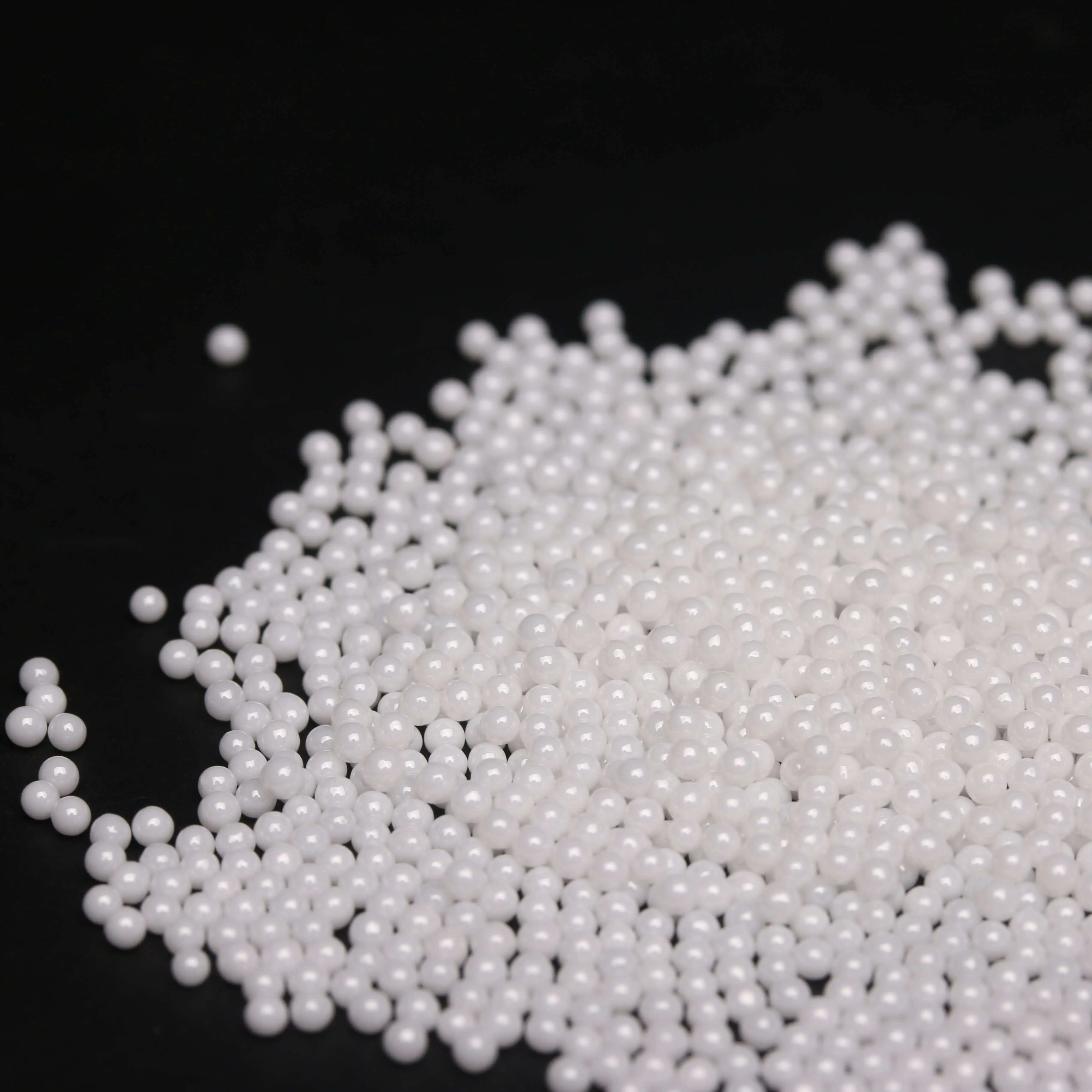

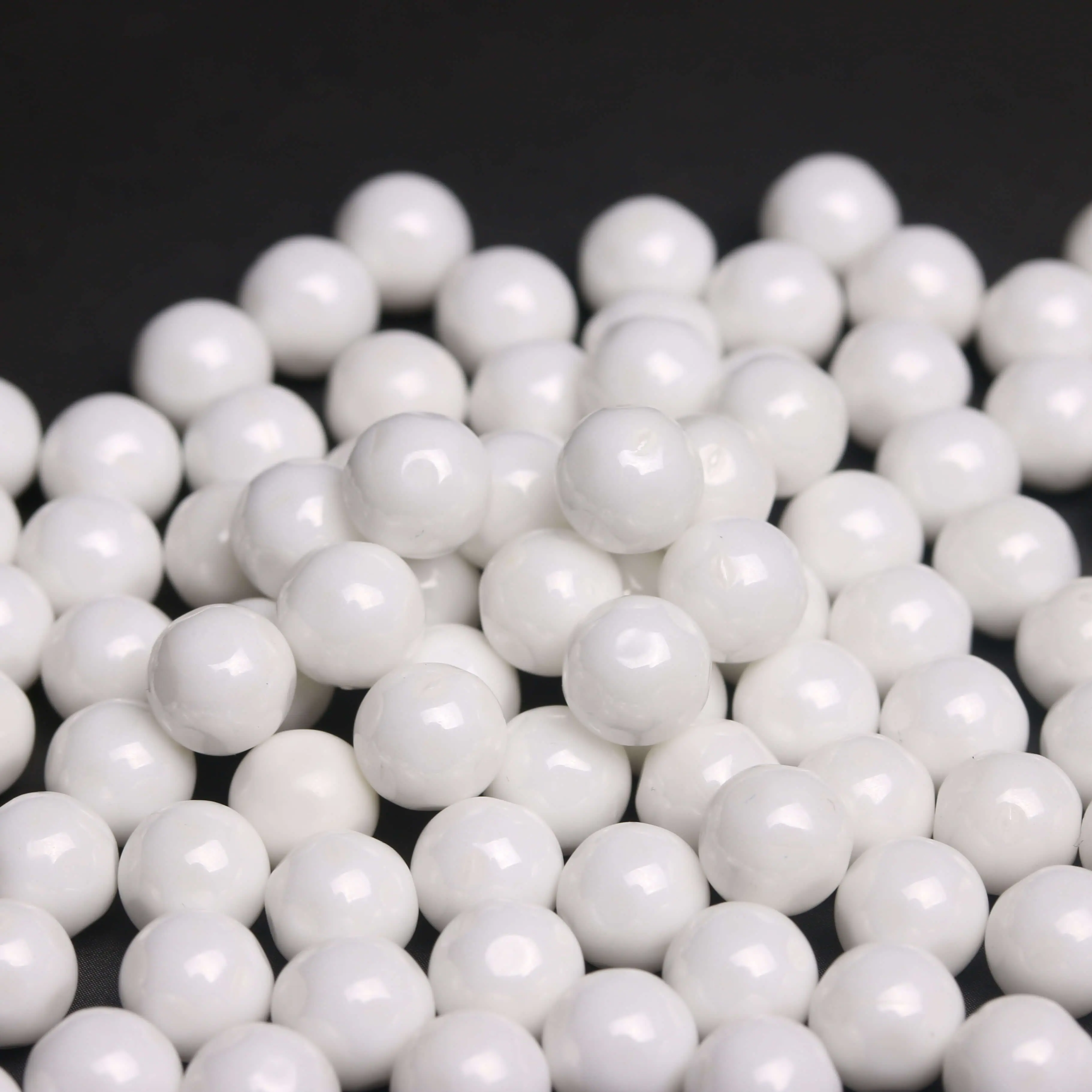

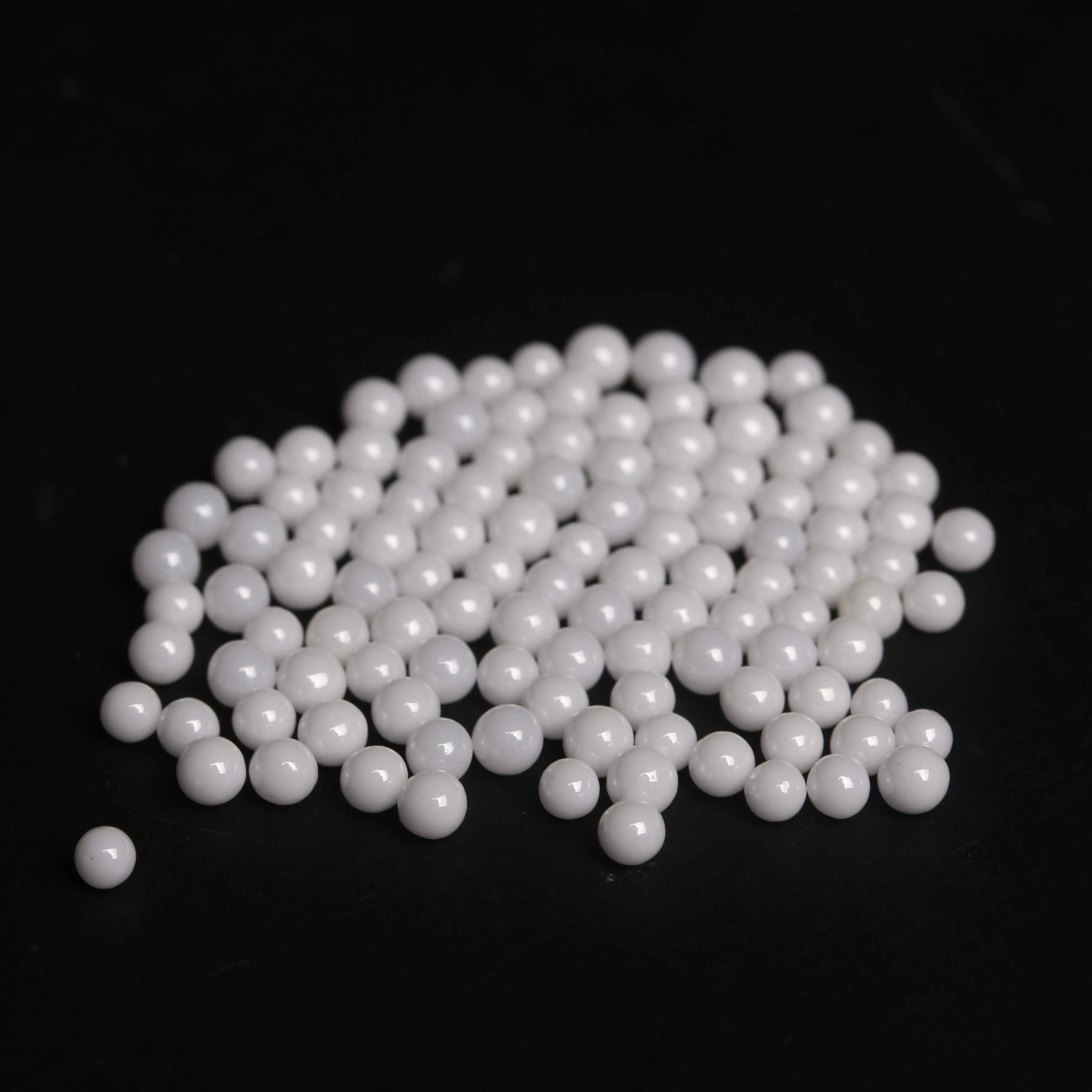

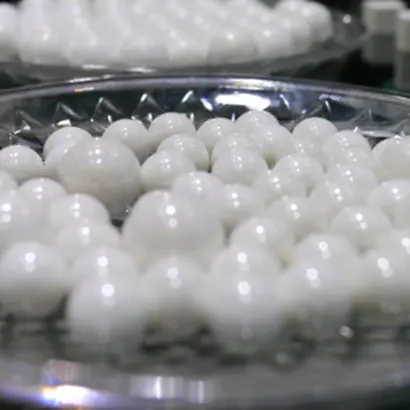

Yttria Stabilized Zirconia Ball
Prevents material contamination due to its extremely low wear rate.
High grinding efficiency for superior processing performance.
Lower total costs due to extended service life.
Users
Materials for grinding and dispersing, structural ceramics, electronics ceramics, refractory ceramics, magnetic material, metallurgy, medicine, food, cosmetics, textiles, printing and dyeing, pigment and other industries.
Specification
Items
Unit
Specification
Composition
wt%
94.5% ZrO2 / 5.25% Y2O3
Bulk Density
Kg/L
3.73 (Φ2mm)
Specific Density
g/cm³
≥6.02
Hardness (HV)
GPa
>8.5
Elastic Modulus
GPa
200
Thermal Conductivity
W/m.K
3
Crushing Load
KN
≥20 (Φ2mm)
Fracture Toughness
MPam¹/²
9
Grain Size
µm
≤0.5
Thermal Expansion Coefficient (20–400°C)
10×10⁻⁶ / °C
9.6
Available Size
Size (mm)
Size (mm)
Size (mm)
Size (mm)
Φ0.1
Φ1.2–1.4
Φ3.0–3.2
Φ25
Φ0.2
Φ1.4–1.6
Φ5
Φ30
Φ0.3–0.4
Φ1.6–1.8
Φ6.5
Φ35
Φ0.4–0.6
Φ1.8–2.0
Φ10
Φ40
Φ0.6–0.8
Φ2.0–2.2
Φ12
Φ45
Φ0.8–1.0
Φ2.2–2.4
Φ15
Φ50
Φ1.0–1.2
Φ2.4–2.6
Φ20
Φ55
Wear Resistance Compared with Other Grinding Media
Frequently Asked Questions
Q
What are Zirconia Ceramic Beads made of?
Zirconia Ceramic Beads are primarily composed of 94.5% ZrO₂ (zirconium dioxide) stabilized with 5.25% Y₂O₃ (yttrium oxide). This yttria-stabilized composition provides exceptional hardness, high density, and outstanding wear resistance.
Q
What industries are Zirconia Ceramic Beads suitable for?
Zirconia Ceramic Beads are widely used across numerous industries including paints & coatings, inks, battery materials, minerals & mining, agrochemicals, pharmaceuticals & food, electronic materials, structural ceramics, cosmetics, textiles, and printing & dyeing industries.
Q
What sizes are available for Zirconia Ceramic Beads?
Zirconia Ceramic Beads are available in a wide range of sizes from Φ0.1mm up to Φ55mm, covering micro-grinding to large-scale milling applications. Common sizes include Φ0.1, Φ0.2, Φ0.3–0.4, up through Φ55mm to meet diverse processing requirements.
Q
How do Zirconia Beads compare to other grinding media in wear resistance?
Zirconia Ceramic Beads significantly outperform conventional grinding media such as glass beads, alumina beads, and steel balls in wear resistance. Their extremely low wear rate minimizes material contamination and extends the service life of the beads, resulting in lower overall production costs.
Q
Are Zirconia Ceramic Beads safe for use in food and pharmaceutical applications?
Yes. Due to their extremely low wear rate and high chemical inertness, Zirconia Ceramic Beads are suitable for use in food processing and pharmaceutical grinding applications where high purity and zero contamination are critical requirements.
Q
What are the key physical properties of Yttria Stabilized Zirconia Beads?
The key physical properties include: Specific Density ≥6.02 g/cm³, Hardness (HV) >8.5 GPa, Elastic Modulus of 200 GPa, Fracture Toughness of 9 MPam¹/², Grain Size ≤0.5 µm, and a Crushing Load of ≥20 KN (Φ2mm). These properties ensure superior grinding efficiency and long-term durability.
